Key Specifications

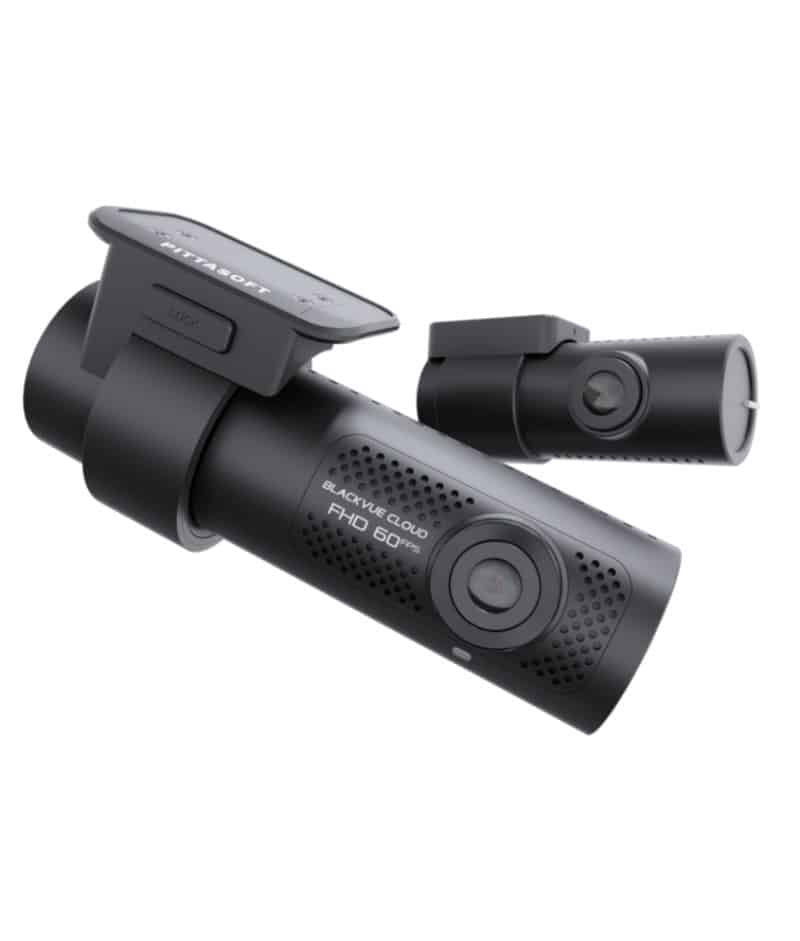

Model Name	DR750X-2CH Plus
Channel	2 Channel (Front + Rear)
Colour / Size / Weight	Front: Black / Width 118.5 mm x Height 36 mm / 103 g Rear: Black / Width 67.4 mm x Height 25 mm / 25 g
Memory	microSD Card (32 GB/64 GB/128 GB/256 GB)
Speaker & GPS	Built-in
LED	Front: Recording LED, GPS LED, Wi-Fi LED Security LED, Proximity Sensor LED Rear: Security LED
Sensor	3-Axis acceleration sensor
Battery or Capacitor	Built-in Super Capacitor Capacitor’s are better as they are not at risk of heat damage which batteries face.

Camera + Recording

Recording Mode	Normal Recording Event Recording (Impact Detection) Manual Event Recording Parking Mode Recording (Impact and Motion Detection). For extended Parking Mode recording, a B112 or B124X dedicated battery pack is recommended.
Button	Wi-Fi: Enable or disable the WiFi function Proximity sensor: Voice recording on/off Touch the button or it recognises when a hand approaches to within about 2cm.
Camera	Front: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle	Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 139°, Horizontal 116°, Vertical 61°
Format Free	Yes (Adaptive)
Resolution/FPS	Front: Full HD (1920×1080) @60fps Rear: Full HD (1920×1080) @30fps Camera resolution is fixed and cannot be changed
Image Quality	Highest (Extreme): 25 + 10 Mbps Highest (12 + 10 Mbps) High (10 + 8 Mbps) Normal (8 + 6 Mbps) Second value refers to rear camera
Video Codec	H.264 (AVC)
Video File Extension	MP4

Operating

Input Voltage	DC 12V – 24V (3 pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V) Note: USB cables are only 5V and will not power on the dash cam.
Current Consumption	Normal Mode (WiFi On / GPS On / 2CH) : Avg. 390mA / 12V Normal Mode (WiFi Off / GPS On / 2CH) : Avg. 340mA / 12V Parking Mode (WiFi On / GPS Off / 2CH) : Avg. 350mA / 12V Parking Mode (WiFi Off / GPS Off / 2CH) : Avg. 300mA / 12V Actual power consumption may vary depending on use conditions and environment.
Voltage Cut-off	Built-in Variable Voltage Cut-off System 11.8V – 12.5V 22.8V – 24V
Operating & Storage Temp.	-20℃ – 80℃ (-4°F – 176°F )
High Temperature Cut-off	Approximately 80℃ (176°F)

Other

Wi-Fi	Built-in (802.11n 2.4~2.4835 GHz)
Software	BlackVue Viewer* Windows 7 or higher and Mac OS X Sierra (10.12) or higher.
GPS	Built-in (Dual Band: GPS, GLONASS)
Application	BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher) Some videos may not play on HTC mobile devices due to the resolution of the files
Microphone	Built-in
Origin	Made in Korea
Certifications	Front: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
Warranty	36 Months Warranty (Australian Customers Only)
